Bowen Series – 316SS

An IP66 enclosure perfect for increased mechanical protection and designed to meet the harsh demands of mining environments.

Product Information

Applications

Suitable for housing terminations, pushbuttons, isolators or switchgear in industrial or demanding environments such as washeries, processing and sampling stations.

Features

IP66 protection rating – more info on IP ratings

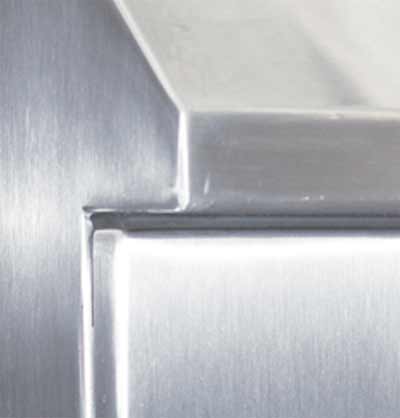

40º sloping roof and 40mm roof overhang reduces material build up
Sunshade enclosure options available – Bowen Series – 316SS with Sunshades
Easy installation with top and bottom mounting flanges
Removable lifting lugs are fitted to 800mm and 1200mm high enclosures
Internal door rails fitted to ensure mounting flexibility
Internal 6mm earth stud
Available with varying body/door thickness

Construction

Body thickness – 2.0mm or 1.5mm
Door thickness – 2.0mm or 1.5mm
ASSDA approved N4 surface finish

Enquiry Form

Name
First Last
Company
Postcode*
Country
Email*
Phone
Your Enquiry*
I am interested in one of the products on the Bowen Series – 316SS page of your website.
Your Enquiry*
What would you like to ask us about today?
Newsletter
- Subscribe to our Newsletter
CAPTCHA
Email
This field is for validation purposes and should be left unchanged.

Downloads Accessories Enquiry

Order Guide

The Bowen Series is available in 3 different configurations. These are: –

BL Series – Made from 1.5mm thick stainless steel
BM Series – Made from 1.5mm thick stainless steel, but with a 2mm thick enclosure door
BW Series – Made from 2mm thick stainless steel

The different product configurations are shown in the table below.

Part Number	Height (mm)	Width (mm)	Depth (mm)	Usable Depth* (mm)	CAD Blocks	Enquiry
BL040320/S	400	300	200	179	dwg	Enquiry
BL040420/S	400	400	200	150	dwg	Enquiry
BL060420/S	600	400	200	150	dwg	Enquiry
BL060630/S	600	600	300	250	dwg	Enquiry
BL080630/S	800	600	300	250	dwg	Enquiry
BL120830/S	1200	800	300	250	dwg	Enquiry
BM040320/S^	400	300	200	179	dwg	Enquiry
BM040420/S^	400	400	200	150	dwg	Enquiry
BM060420/S^	600	400	200	150	dwg	Enquiry
BM060630/S^	600	600	300	250	dwg	Enquiry
BM080630/S^	800	600	300	250	dwg	Enquiry
BM120830/S^	1200	800	300	250	dwg	Enquiry
BW040320/S^	400	300	200	179	dwg	Enquiry
BW040420/S	400	400	200	150	dwg	Enquiry
BW060420/S^	600	400	200	150	dwg	Enquiry
BW060630/S^	600	600	300	250	dwg	Enquiry
BW080630/S	800	600	300	250	dwg	Enquiry
BW120830/S	1200	800	300	250	dwg	Enquiry
